REAR LOADER Satellite up to 3m³

SPECIFICATIONS
  • Compaction: No
  • Fractions: 1
  • Steel: Yes
  • Aluminium: Yes
  • Rear Bin Lift: Yes
  • Side Bin Lift: No
  • Containers: Or 2 and 3: 120-360, Or 5 and 7: 120 – 1100
  • Steel pannier, door-to-door: No
  • Fabric pannier, door-to-door: YNo
  • Side Door: YNo
  • Footboard(s): 1/2
  • Capacity: Or 2 and 3: 2.2-3.5 m³, Or 5: 5.5 m³, Or 7: 7.0 m³
  • MMA Chassis: Or 2 and 3: 1.7-2.2 t, Or 5: 3.5-5 t, Or 7: 5-7.5 t
+34 603 454 386
info@gigarent.es

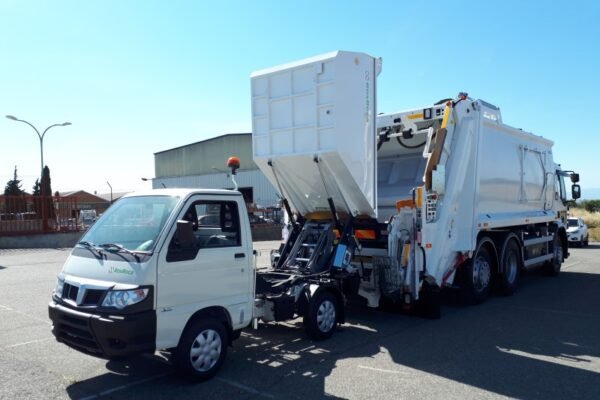

Rear Loader Satellite up to 3 m³

  • Available equipment Model: Terberg ORUS, Farid Micro, Bucher R200, IRIDE SAT
  • Available on Chassi: PIAGGIO PORTER, NISSAN CABSTAR, ISUZU NQR, RENAULT 130.35
  • Power Take-Off (PTO): Operated via PAM output from the gearbox.
  • Unloading System: Ejector plate system with variable ejector retention, controlled rear part of the truck
  • Full Ejection: Pass-through ejector (approx. 15 cm) allows complete discharge of the container and facilitates maintenance operations.
  • Guidance System: High-durability rectangular sliders for sled and press guidance.
  • Inspection Hatch: Located on the right side of the waste container.
  • Safety Support: 1 safety prop on the right side of the tailgate.
  • Lifeline: Installed on the upper part of the container.

Container Lifting System

  • Automatic Split Lift:
    • Suitable for bins from 80 to 390 liters (EN 840-1).
    • Containers from 500 to 1,100 liters with a flat lid (EN 840-2).



Control & Safety Systems

  • Lifting System Control & Logging: Located on the right side.
  • Foldable Loading Edge.
  • Foldable Footboards: Equipped with presence control and weight detector.
  • Speed Limiter: 30 km/h limit and reverse gear inhibition when an operator is on the footboard.
  • System Control via Safety PLC.
  • Rear Control Buttons:
    • Two compactor control panels, one on each side.
    • Multi-cycle button on the right side.
    • Unloading control button on the left front side of the container.
    • Unit unloading from the cab control panel.
  • Operational Counters:
    • Working hours counter.
    • Compaction cycle counter.

Additional Equipment

  • Rearview Camera: With an additional TFT monitor in the cab.
  • Lighting:
    • One rear work light for the loading area.
    • One rotating beacon on the tailgate.
  • Safety Features:
    • Certified cyclist protection.
  • Painting: Equipment painted in white to match the cab.

Certifications

  • CE Certification (2006/42/EC): Machinery Safety Directive.
  • CE Certification (EN 1501-1): Waste collection vehicle compliance.
  • CE Certification (2000/14/EC): Noise Emission Directive.
