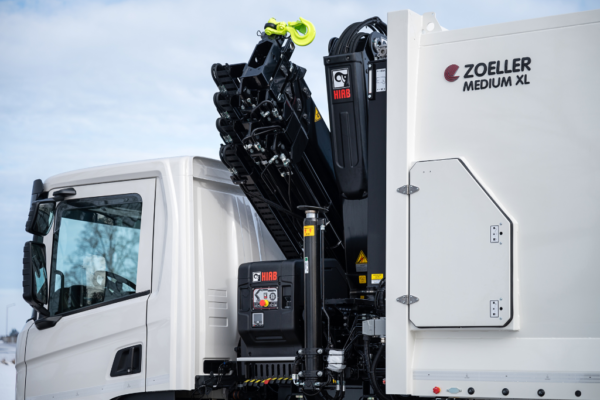

REAR LOADER Compactor with crane

SPECIFICATIONS
  • Volume: 13-27 m³
  • Overall box length (with standard tailgate): 4975-7875 mm
  • Overall box width: 2530 mm
  • MMA: 18-32 tons
  • Compaction cycle time, nominal: 18 s
  • WIDE rear gate capacity (calculated according to EN1501 – 1400 mm edge height): 2.58 m³
+34 603 454 386
info@gigarent.es

Rear-Loading Waste Collector with the crane

  • Available equipment Model: Ros Roc Olympus; Farid T1M; NTM T700; Zoller Magnum;
  • Available on Chassi: Scania P; Iveco S-WAY, Renault D W, MB Econic, Volvo FE
  • Power Take-Off (PTO): Operated via PAM output from the gearbox.
  • Unloading System: Ejector plate system with variable ejector retention, controlled from the cab.
  • Full Ejection: Pass-through ejector (approx. 15 cm) allows complete discharge of the container and facilitates maintenance operations.
  • Guidance System: High-durability rectangular sliders for sled and press guidance.
  • Inspection Hatch: Located on the right side of the waste container.
  • Safety Support: 1 safety prop on the right side of the tailgate.
  • Lifeline: Installed on the upper part of the container.

Container Lifting System

  • Automatic Split Lift:
    • Suitable for bins from 80 to 390 liters (EN 840-1).
    • Containers from 500 to 1,100 liters with a flat lid (EN 840-2).
    • 1,200-liter containers with a curved lid.

Control & Safety Systems

  • Lifting System Control & Logging: Located on the right side.
  • Foldable Loading Edge.
  • Foldable Footboards: Equipped with presence control and weight detector.
  • Speed Limiter: 30 km/h limit and reverse gear inhibition when an operator is on the footboard.
  • System Control via Safety PLC.
  • Rear Control Buttons:
    • Two compactor control panels, one on each side.
    • Multi-cycle button on the right side.
    • Unloading control button on the left front side of the container.
    • Unit unloading from the cab control panel.
  • Operational Counters:
    • Working hours counter.
    • Compaction cycle counter.

Additional Equipment

  • Rearview Camera: With an additional TFT monitor in the cab.
  • Lighting:
    • One rear work light for the loading area.
    • One rotating beacon on the tailgate.
  • Safety Features:
    • Certified cyclist protection.
  • Painting: Equipment painted in white to match the cab.

Certifications

  • CE Certification (2006/42/EC): Machinery Safety Directive.
  • CE Certification (EN 1501-1): Waste collection vehicle compliance.
  • CE Certification (2000/14/EC): Noise Emission Directive.
