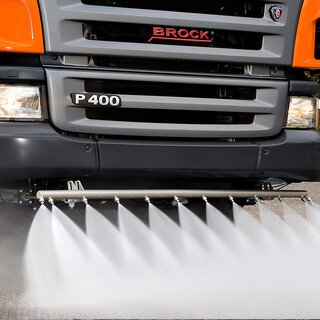

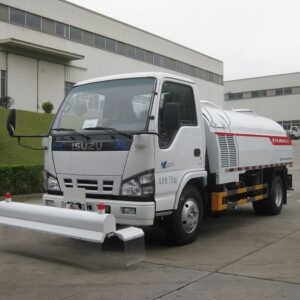

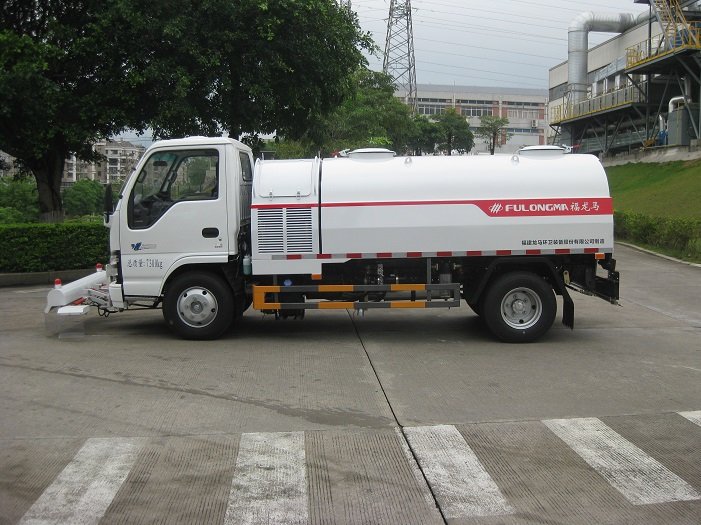

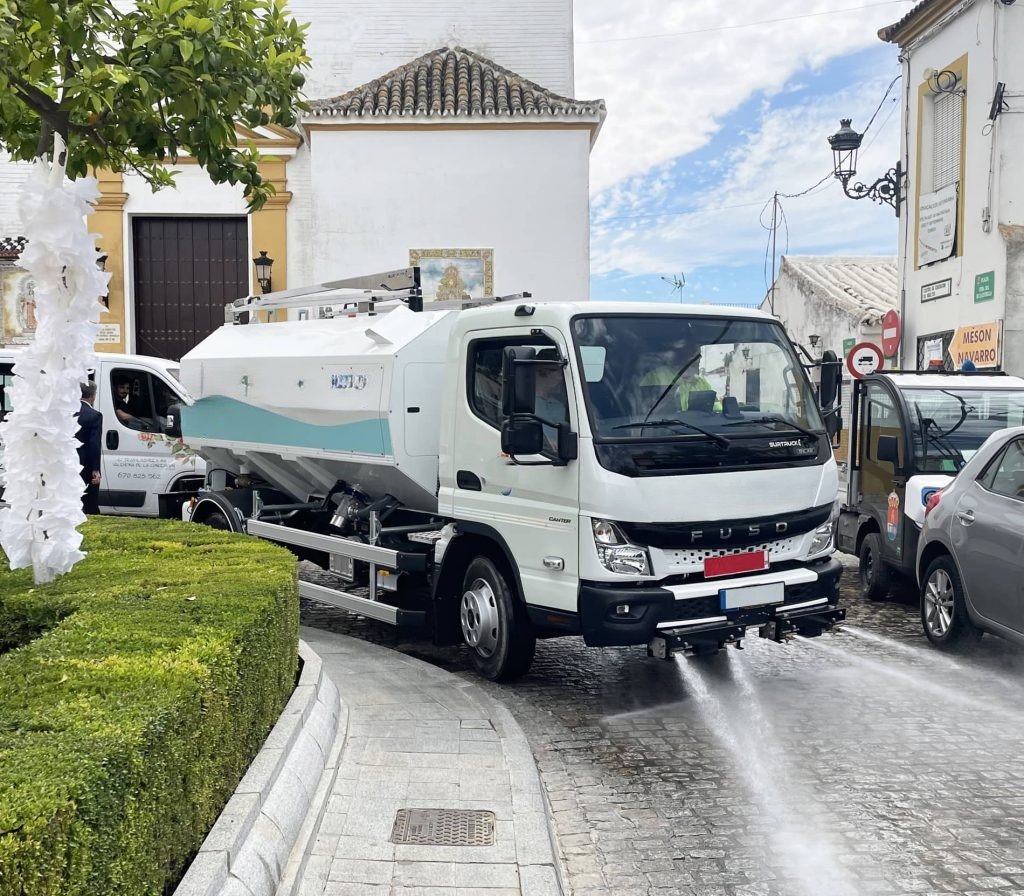

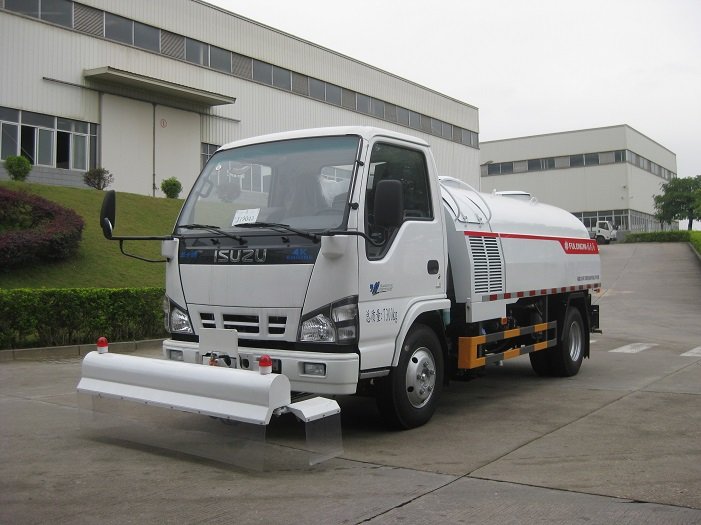

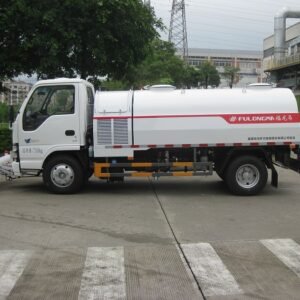

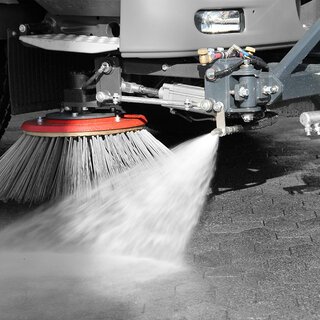

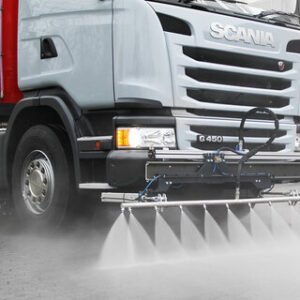

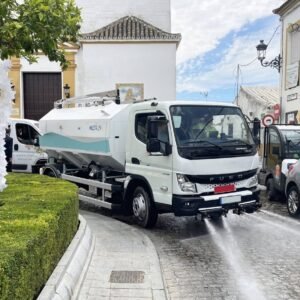

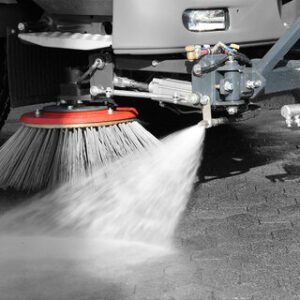

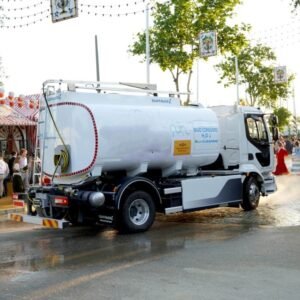

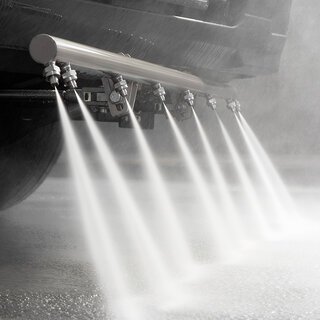

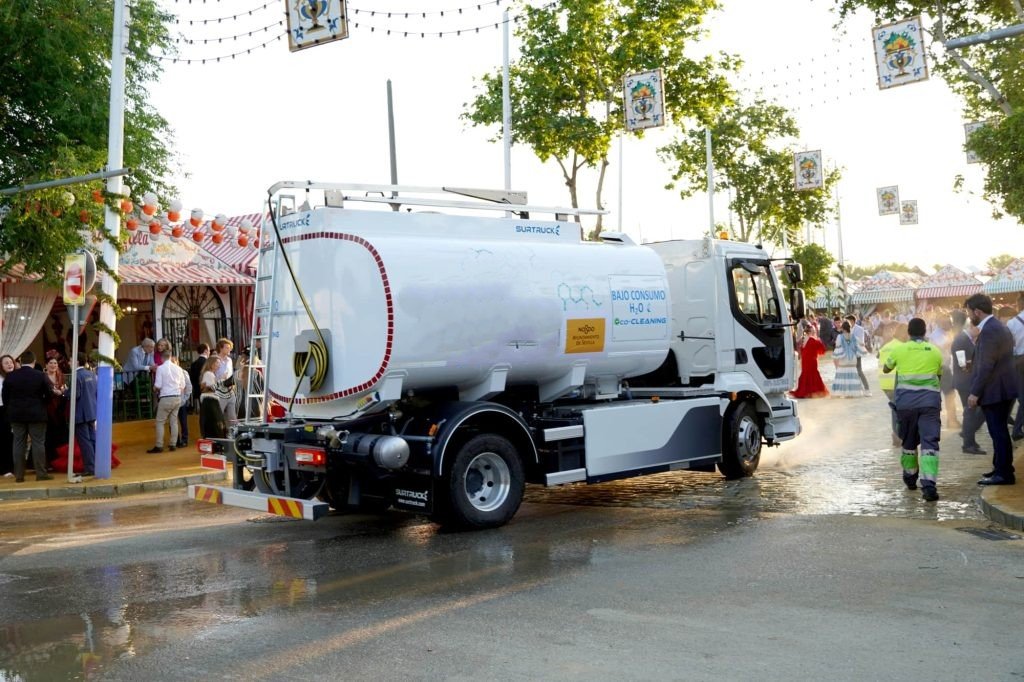

The High Pressure Street Washing Unit is a highly versatile street washing unit series that has defined street washing scene for decades. With low water consumption, these compact units clean large areas without frequent refilling, making it efficient and cost-effective. Designed for versatility, it can be easily connected to loaders, compact loaders, tractors, and trucks. The lineup includes various models and configurations, including the, which integrates the washing boom at the front of a truck or pickup for more compact cleaning operations.
ROAD CLEANING
SPECIFICATIONS
- Adapted to IVECO, RENAULT, MERCEDES, SCANIA, or similar trucks
- Tank made of polyester reinforced with fiberglass.
- Exterior fairing composed of a double outer wall with an intermediate polyurethane layer.

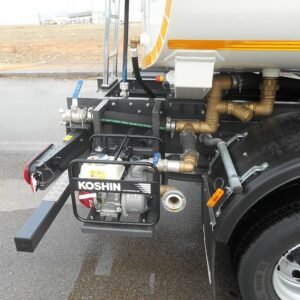

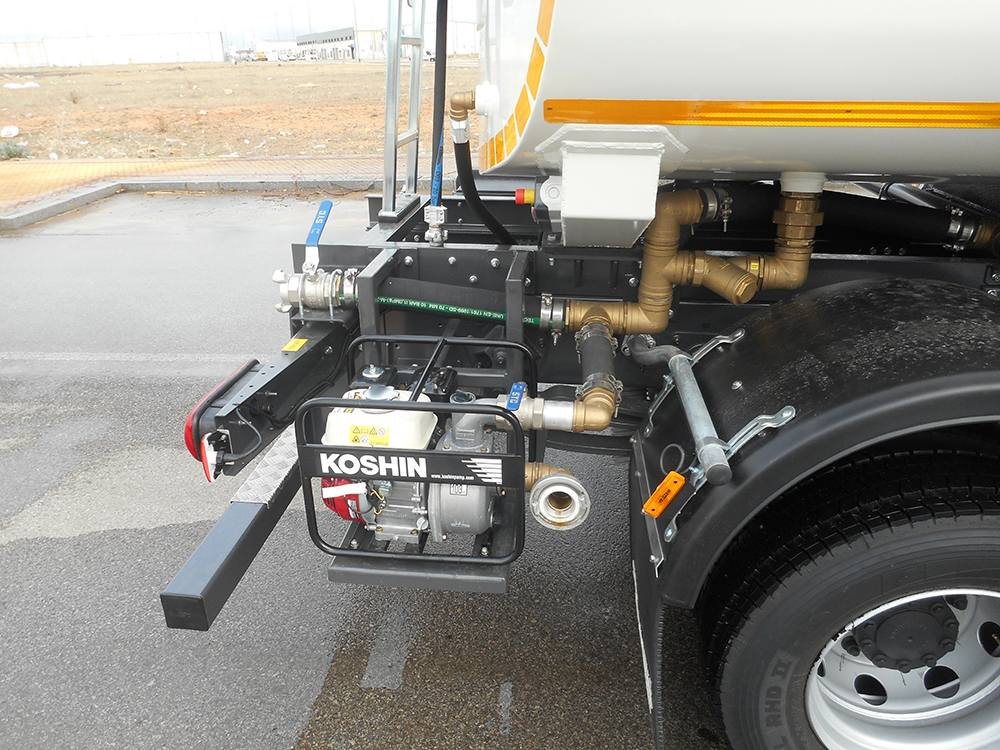

- Hydraulic oil motor driven motor pump group coupled with oil pump coupled to chassis gearbox.
- Multistage pump of 15 m3/h and 15 Kg/cm2.
- Soundproof edify motor-pump room. Auxiliary motor cooling by water.
- Two irrigation pineapples and double set of buckets.
- Hose-holder reel with 25 mts. hose and 3-effects spear.
- Electro pneumatic manipulator frame.
- Control panel in cab for hydraulic system operation.
- Loading mouth on the right side.
- Three loading systems, by suction by means of the baldeo pump, by mains pressure and by gravity.
- Flow drive with progressive regulation electrical control.
- Tank level indicator tube.
- Overflow tube with direct discharge to the ground without interfering with the chassis.
- Approved time-travel device.
- Fixed anti-cyclist protection bars.
- White finish paint, just like the chassis cab.
- Side tool holder drawer.
- Swivel headlamp amber approved.
-
6,000 Lts 12-Tn chassis 8,000 Lts 15-Tn chassis 10,000 Lts 18-Tn chassis 15,000 Lts 26 Tn chassis
