SIDE LOADER from 17 m³ to 29 m³

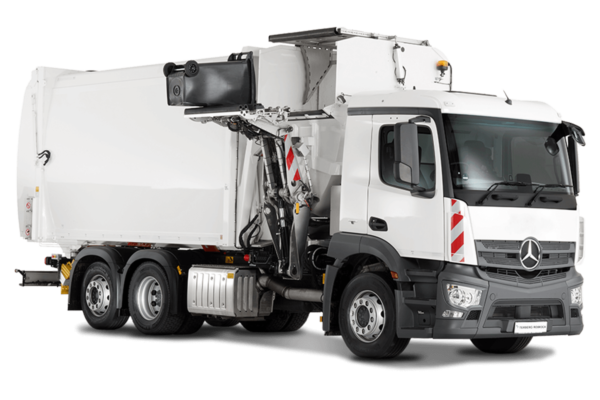

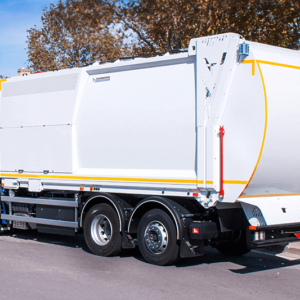

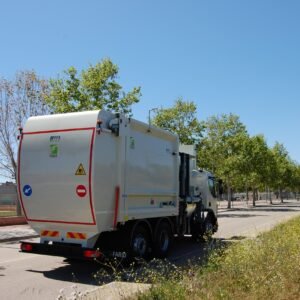

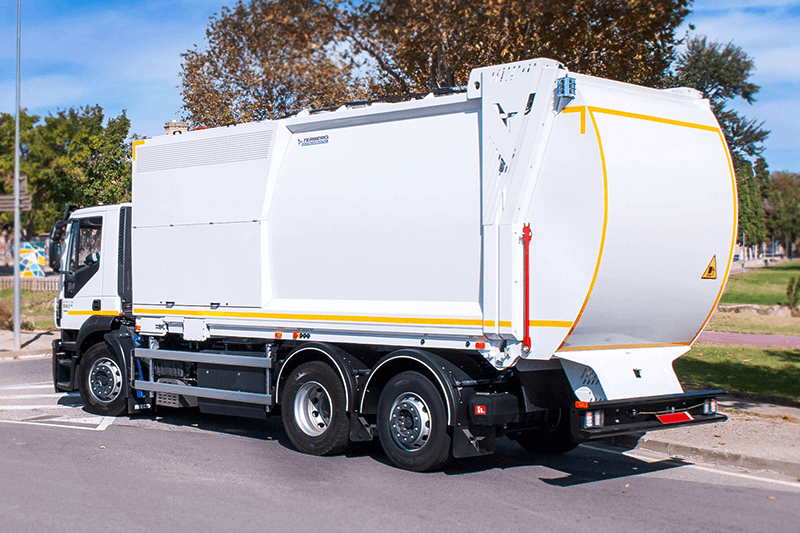

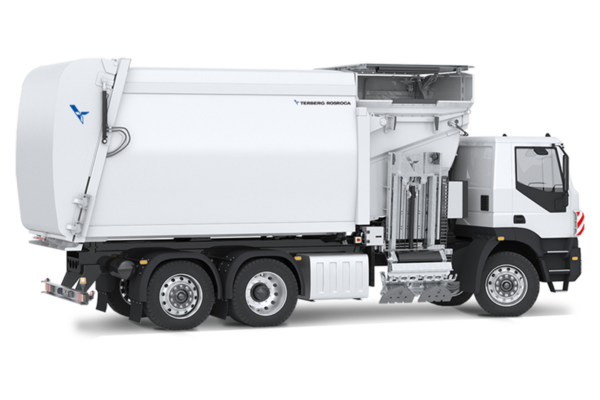

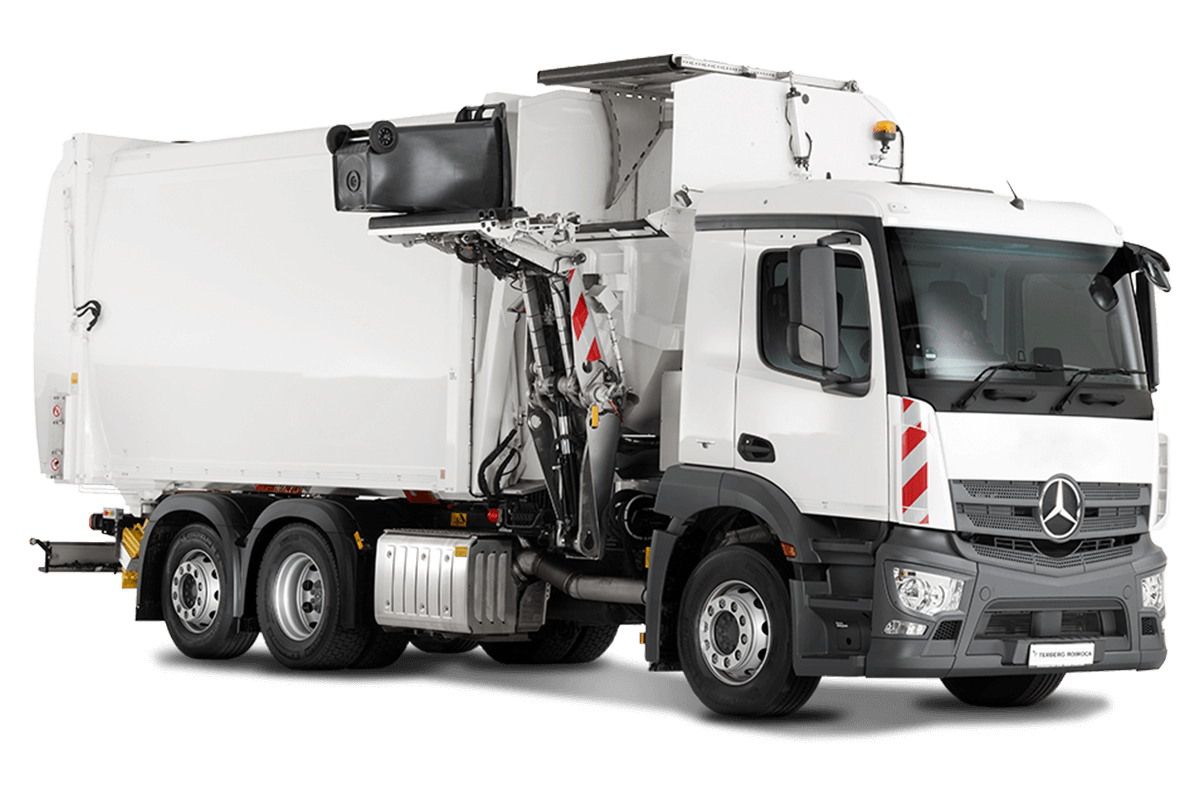

Side-Loading Waste Collector from 17 m³ to 29 m³

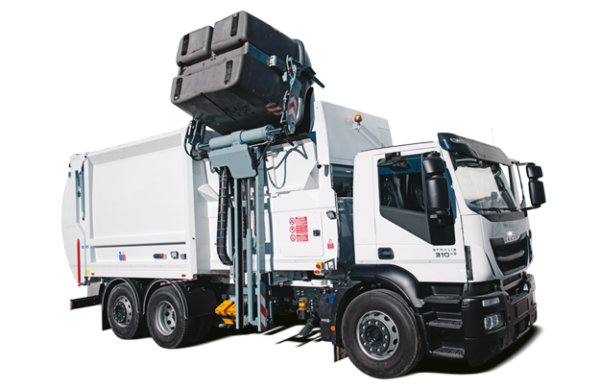

• Available equipment Model: Farid FMO PLUS, Terberg Speedline SLM, NTM FK Pod,
• Available on Chassi: Iveco S-WAY, Renault D, Volvo FM
• Power Take-Off (PTO): Operated via PAM output from external hydraulic pump
• Unloading System: Ejector plate system with variable ejector retention, controlled from the cab.
• Full Ejection: Pass-through ejector (approx. 15 cm) allows complete discharge of the container and facilitates maintenance operations.
• Guidance System: High-durability rectangular sliders for sled and press guidance.
• Inspection Hatch: Located on the right side of the waste container.
• Safety Support: 1 safety prop on the right side of the tailgate.
• Lifeline: Installed on the upper part of the container.

Additional Equipment

• Rearview Camera: With an additional TFT monitor in the cab.
• Lighting:
  • One rear work light for the loading area.
  • One rotating beacon on the tailgate.
• Safety Features:
  • Certified cyclist protection.
• Painting: Equipment painted in white to match the cab.

Certifications

• CE Certification (2006/42/EC): Machinery Safety Directive.
• CE Certification (EN 1501-1): Waste collection vehicle compliance.
• CE Certification (2000/14/EC): Noise Emission Directive.

.
